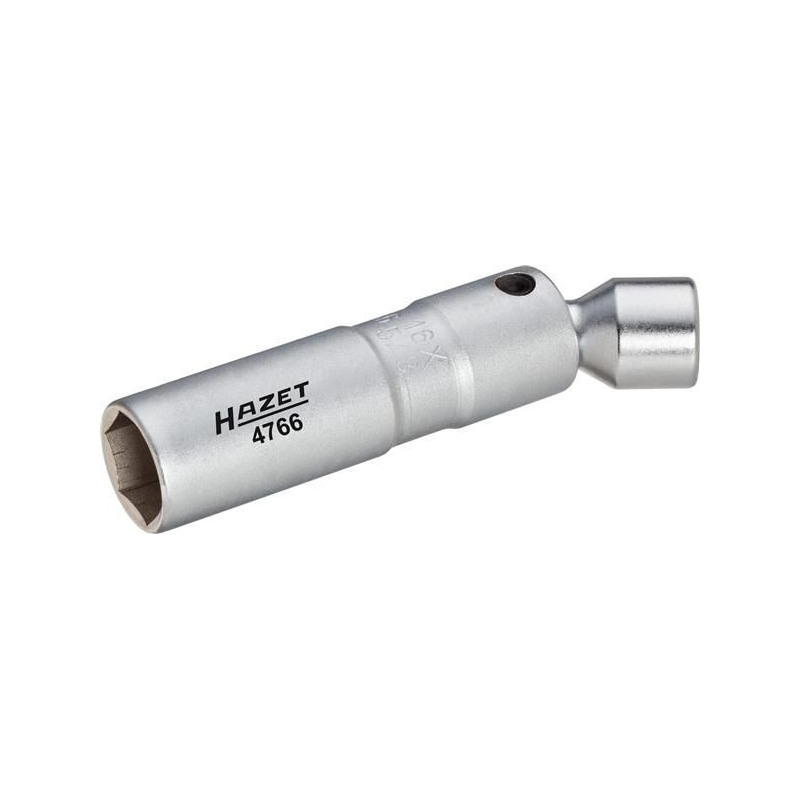

Spark Plug Spanner HAZET 4766

Technical Information: Application:
Installing and removing spark plugs (C-plugs) (Wrench size
16 mm = 5⁄8″)
- Short style
- On e.g. motorcycles, BMW C1 ∙ KAWASAKI ∙ YAMAHA ∙ HONDA ∙
SUZUKI ∙ DUCATI ∙ MERCEDES-BENZ passenger cars e.g. A-Class
(type 168 ∙ 169) ∙ B-Class (type 245) ∙ SMART (type 451)
- With fixing clamp for a firm hold of the spark plug
- Angular movement ± 25°
- American dimensions
- With hinge - for working in areas with restricted access
and for getting around obstructive edges
- Drive with ball race
- Surface: chrome-plated
- Made in Germany
- Drive: Square, hollow 10 mm (3/8 inch)
- Output: Outside hexagon profile
- Wrench size: 16 mm ∙ 5/8 ″
- Dimensions / length: 97 mm
- Diameter d1 (output side): 21.4 mm
- Diameter d2 (drive side): 18 mm
- Net weight: 0.14 kg
- For manual operation
Stainless and insensitive to heat
Largest possible clearance of insulator

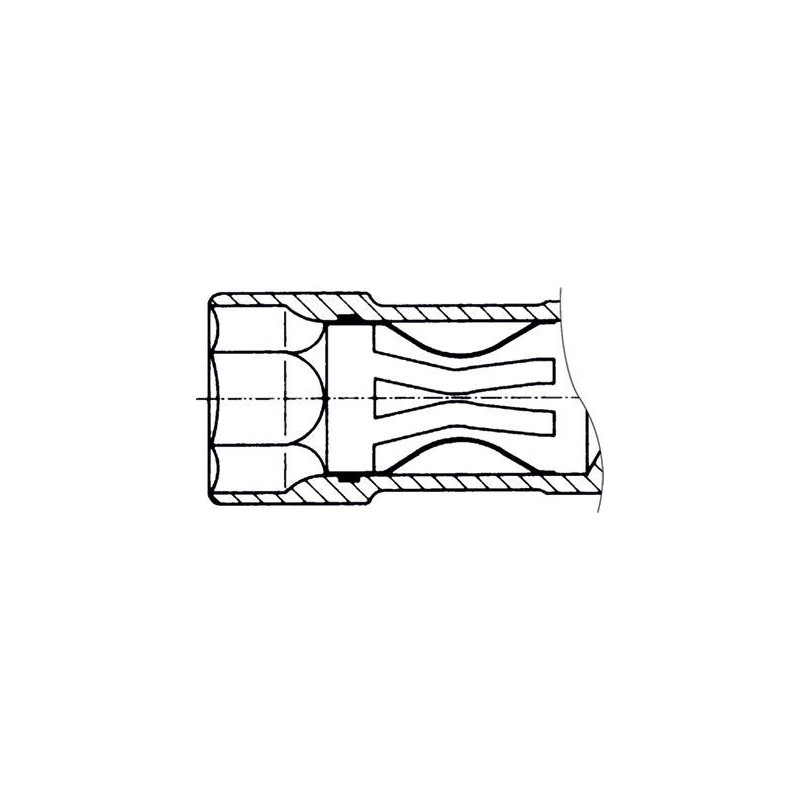

6 spring elements – firm hold of the spark plug
Damping of transverse motion
