Spring Compressor Set, suspension spring HAZET 4904/6

Brief Information: HAZET Universal inside spring vice set 4904/6 ∙ 6-piecesGeneral Information: Application:

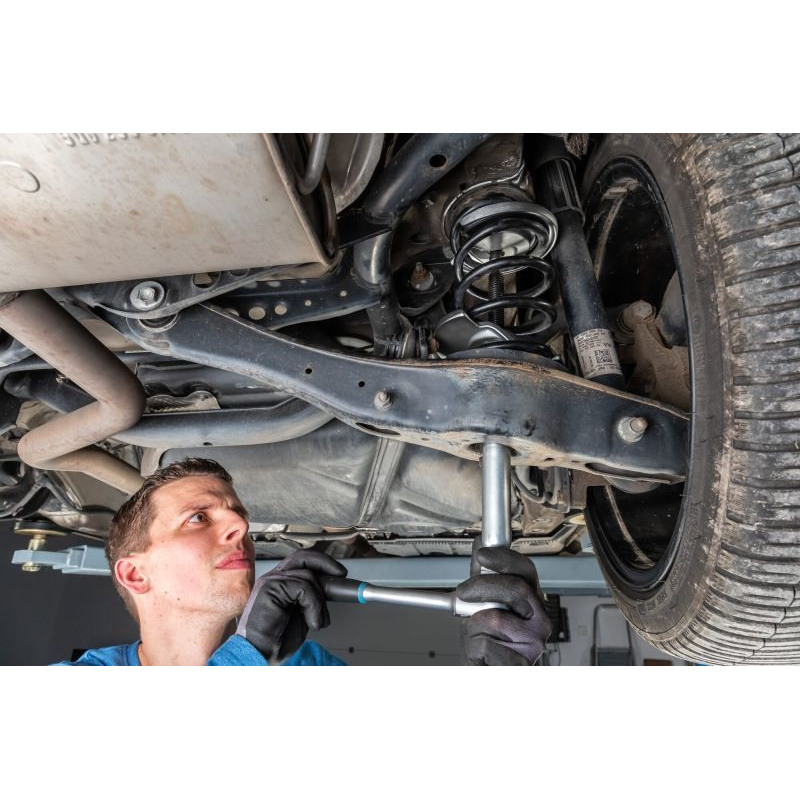

Removal and installation of the coil spring on the rear axle

•Compact HAZET design enables spring replacement with
remarkable time savings

•Universal application on almost all passenger cars

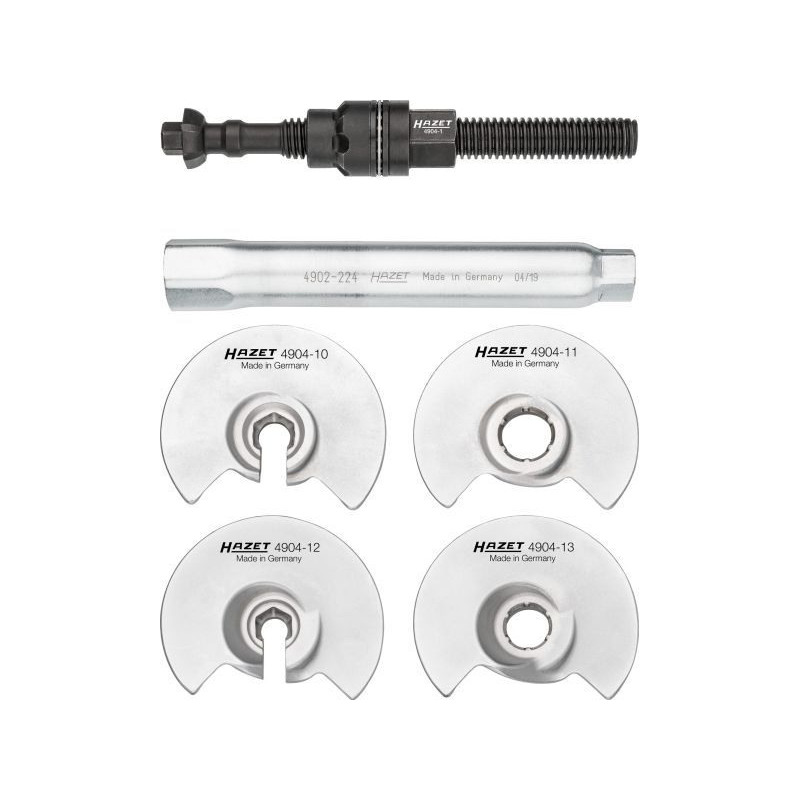

•6-piece set ∙ Contents:

•1 inside spring vice 4904-1

•1 tensioning jaw 4904-10 ∙ span width 64 – 115 mm

•1 tensioning jaw 4904-11 ∙ span width 64 – 115 mm

•1 tensioning jaw 4904-12 ∙ span width 79.5 – 133 mm

•1 tensioning jaw 4904-13 ∙ span width 79.5 – 133 mm

•1 tubular box wrench 4902-224 ∙ s 24 mm



•Anti-rotation device for lower tensioning jaws integrated
in the base component reduces the outer ⌀ to only 32 mm
thanks to compact design

•Pendulum hexagonal head for equal force distribution with
integrated anti-rotation protection for upper tensioning
jaws

•One-sided counterholder for the spindle made possible by
hexagon on top, e.g. with combination wrench HAZET 600N-13

•Removal and installation of springs with small coil
spacing, e.g. for the MINI Cooper S (third generation) ∙
VW Passat (B8)

•Extension of the span to 120 mm and an increase of the
maximum load for increasing vehicle weights (electric and
hybrid vehicles), for safe working up to 31,000 N → Tested
with at least four-fold safety against breakage (GS mark
of tested safety)

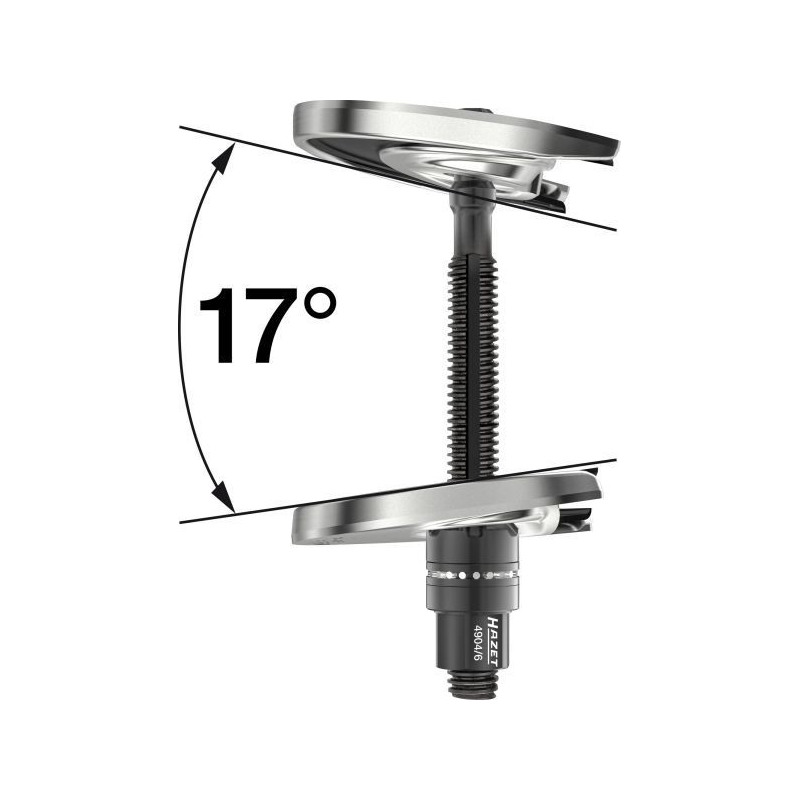

•17° angular movement of the tensioning jaws now ensures
removal of C-shaped (bent) springs, e.g. on the AUDI A4
(B9) ∙ VW Golf 7

•Internal and external guidance of the tensioning jaws
prevents the spring from sliding out

•All tensioning jaws included, reusable, replaceable plastic
protective pads

•Tested on vehicles of the following manufacturers:
AUDI ∙ BMW ∙ CITROËN ∙ FIAT ∙ FORD ∙ HYUNDAI ∙ KIA ∙ MAZDA ∙
MERCEDES-BENZ ∙ MINI ∙ OPEL ∙ PEUGEOT ∙ RENAULT ∙ SEAT ∙
ŠKODA ∙ TOYOTA ∙ VW

Highlights:

•Easy handling for just one user

•Eliminates time-consuming work associated with most spring
removal:

•Removal of axle parts unnecessary

•Axle alignment no longer necessary

•Removal and installation possible in just a few minutes on
each side



•Plastic box

•Soft foam insert

•Made in Germany

•Number of tools: 6
