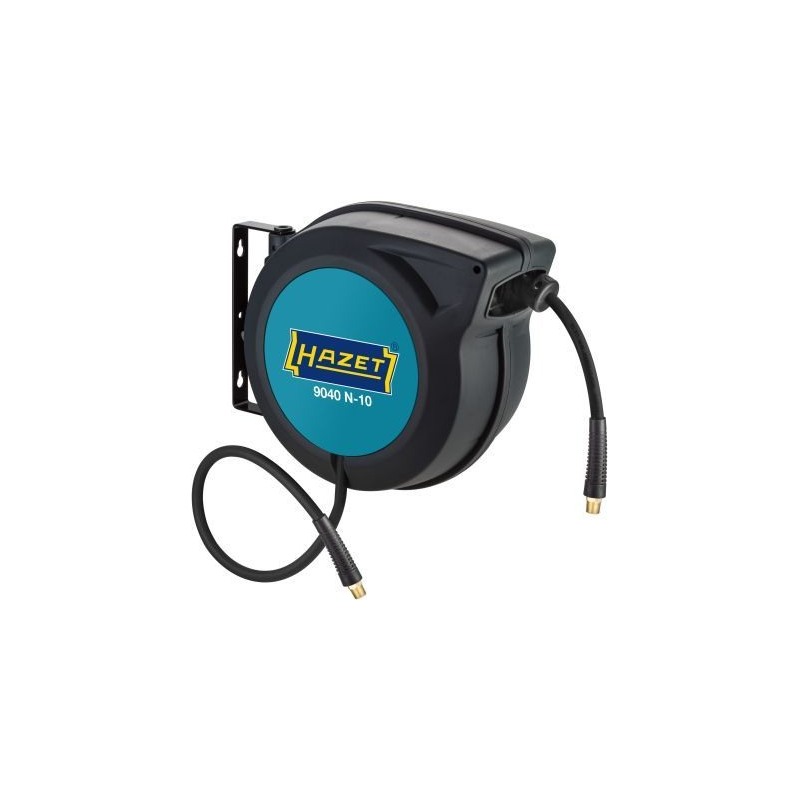

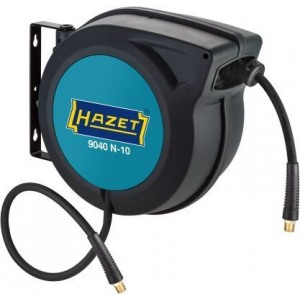

Hose Reel HAZET 9040N-10

Technical Information: Application:
Automatic hose reel offers tidiness in the workshop – hose
not left lying around, thus reducing the risk of accidents
Hose stop at any point with “Stop at any point” function
Neat winding of the hose thanks to automatic guidance
Braked winding to prevent risk of accidents
Suitable for compressed air or water
Dimensions: 459 x 378 x 205 mm
Dimensions (packed): 465 x 400 x 220 mm
Hybrid polymer hose, black
Inside diameter of the hose: 10 mm
Hose length: 15 m
Length of connection hose: 0.9 m
Max. working pressure: 20 bar
Integrated drill template for mounting on cardboard
packaging
Meets all relevant requirements defined in the European
Directives for Machinery 2006/42/EC
Optionally usable with HAZET safety coupling 9000-061
Closed special plastic case, supplied with rotating metal
mounting bracket made for separate installation at the
workplace
Borehole spacing of the mounting bracket: 186 mm
Air connection inlet: Outside thread 16.41 mm (3/8″)
Air connection outlet: Outside thread 16.41 mm (3/8″)
Dimensions / length: 15 m
Net weight: 6.45 kg
Temperature range: -40°C – 60°C
