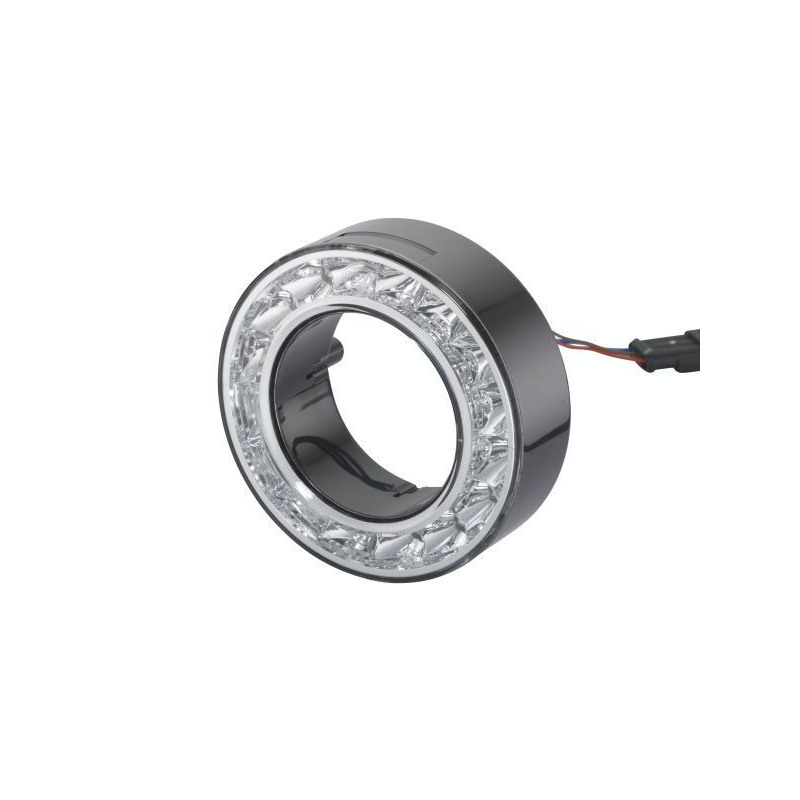

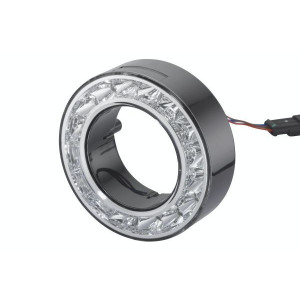

  • Tail Light Assembly HELLA 2SB 009 362-021

    81,17 €
    Preemium Quality level
    HELLA

    Technical Information: Regarding single or double function lamps with LEDs without
    flasher function

    In connection with these low powers, which are
    very different from bulb versions, there can be
    problems during operation on various traction vehicles
    because further lighting functions are detected
    by some traction vehicles. This is a vehicle
    comfort function which is not required by legislation and
    does not release drivers from their obligation
    to see for themselves that the lighting equipment
    is working.
    Here, too, faulty diagnoses can be a result of the lower
    power levels involved (instrument panel in the driver cab
    indicates a bulb failure although the function
    is working).
    The functional ability of these light failure checks can
    only be established by the vehicle manufacturer.
    Operation of the light with alternating current or pulsed
    direct current is not permitted!
    The individual light functions may only be operated with a
    vehicle fuse of max. 3A.
    In the case of onboard current limitation with the values
    specified above by the onboard control unit
    an additional fuse for the lamp is not required.Brief Information: *** Original spare part

    -1+

    Available: more than 5

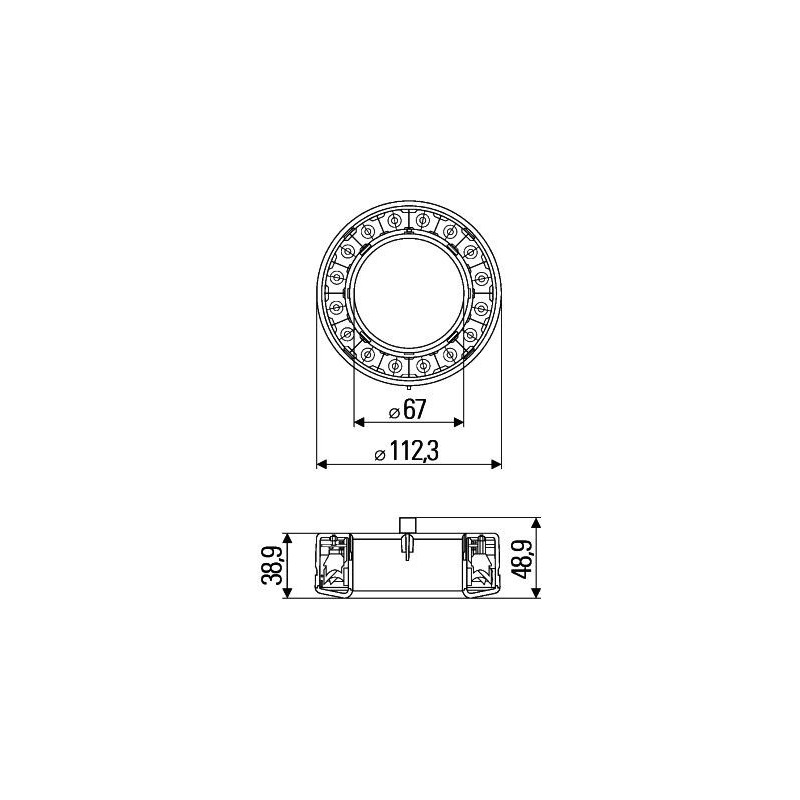

    Length [mm]: 112

    Fitting Position: Left

    Height [mm]: 49

    Bulb Type: LED

    Lens Colour: Crystal clear

    Number of light functions: 2

    Registration Type: ECE approved

    Housing Type: Synthetic Material Housing

    Cable Length [mm]: 250

    Light Design: LED

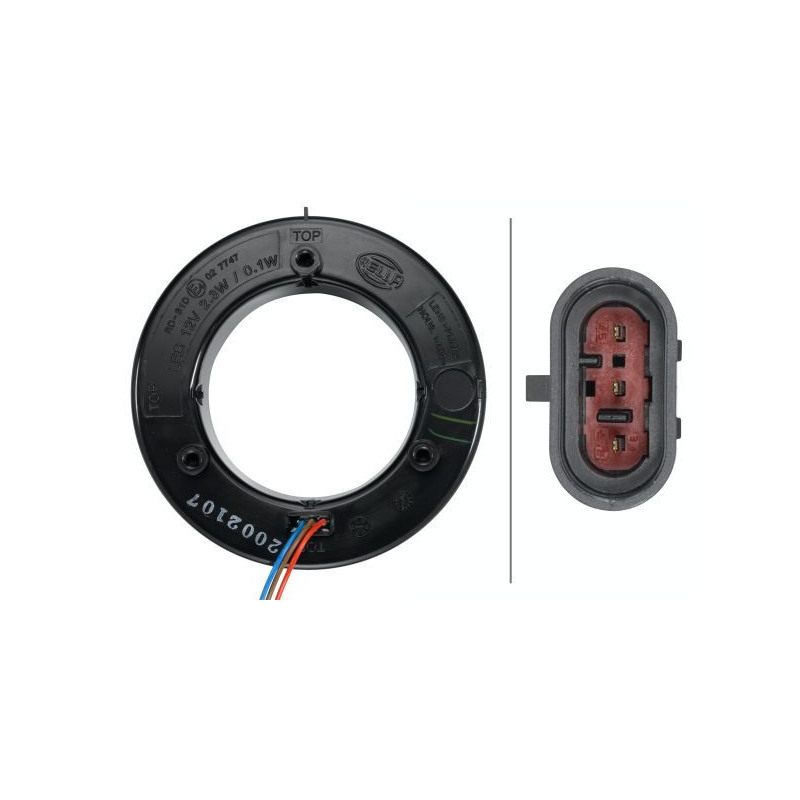

    Plug Type: AMP

    Number of LEDs: 16

    Voltage [V]: 12

    SVHC: 19438-60-9; Hexahydro-4-methylphthalic anhydride

    Mounting Type: mounting

    Light Function: with stop light (LED)

    Housing Colour: black

      • HELLA
        2SB 009 362-021
        Reference
        4082300234213
        EAN
        E4 7747
        Trade number
        E4 7748
        Trade number
        DAF
        090 6242
        OEM number
        HEULIEZ
        C101922024
        OEM number
        SAME
        2.8059.532.0
        OEM number
        FERRARI
        94006181
        OEM number
        DEUTZ-FAHR
        2.8059.532.0
        OEM number
        LANDINI
        6515361J90/P
        OEM number
        6515361M91
        OEM number
        KTM
        XCP00000103
        OEM number
        LINDNER
        3005596
        OEM number
        E.GO
        E00000216263
        OEM number
        WIESMANN
        063-05-03-ET-032
        OEM number
    • Please check whether the spare part shown on our online shop actually corresponds with the spare part you are looking for.
