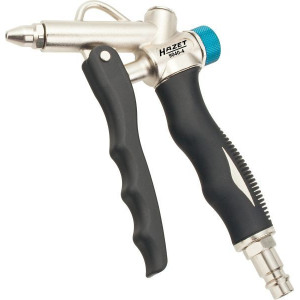

Compressed-air Gun HAZET 9040-4

Brief Information: HAZET 2-way air blow gun 9040-4 General Information: Application:

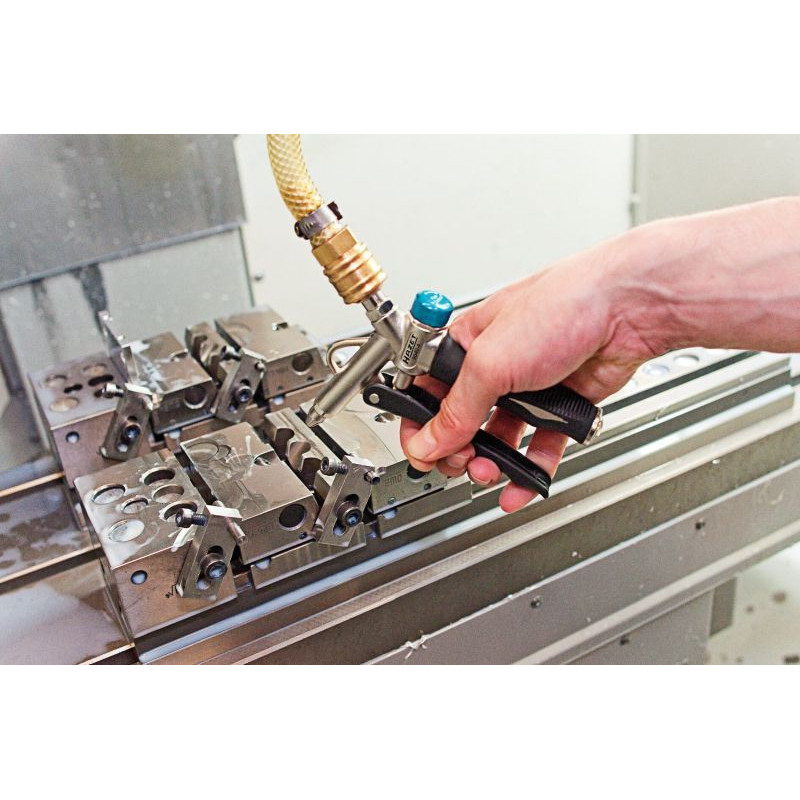

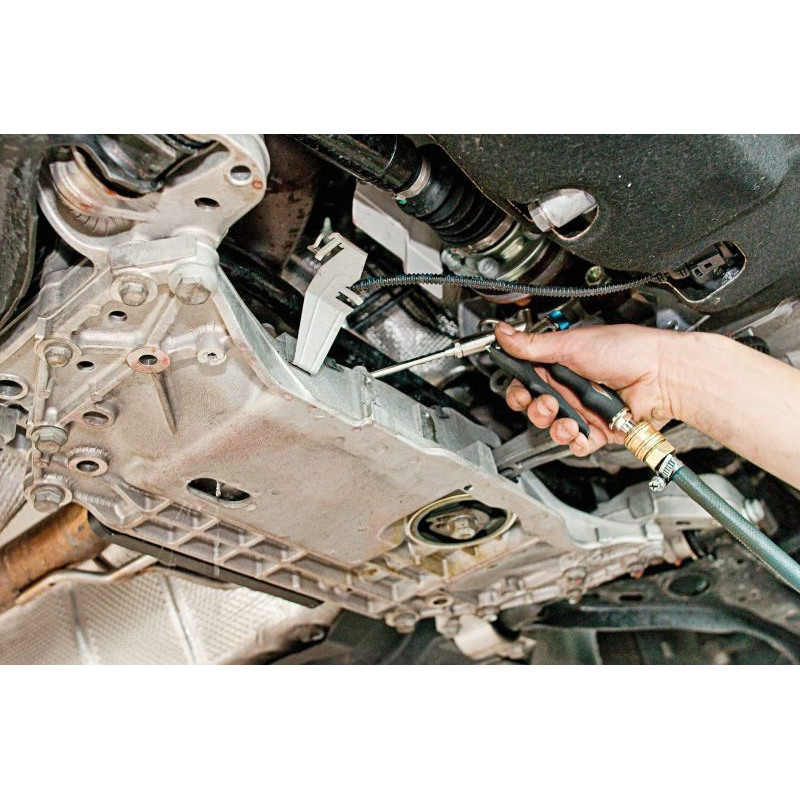

Fast removal of chips or other foreign objects

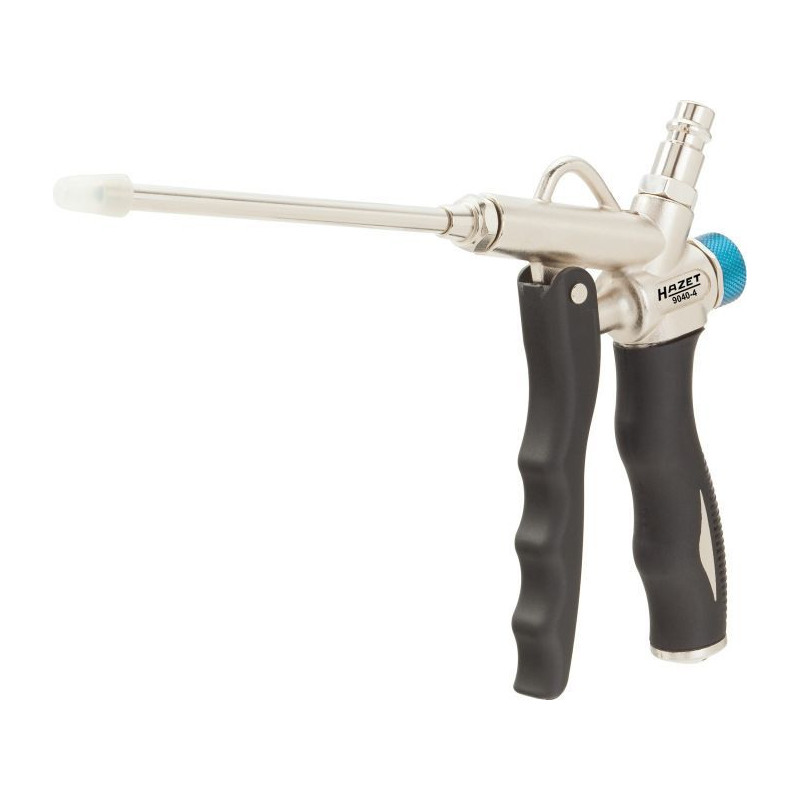

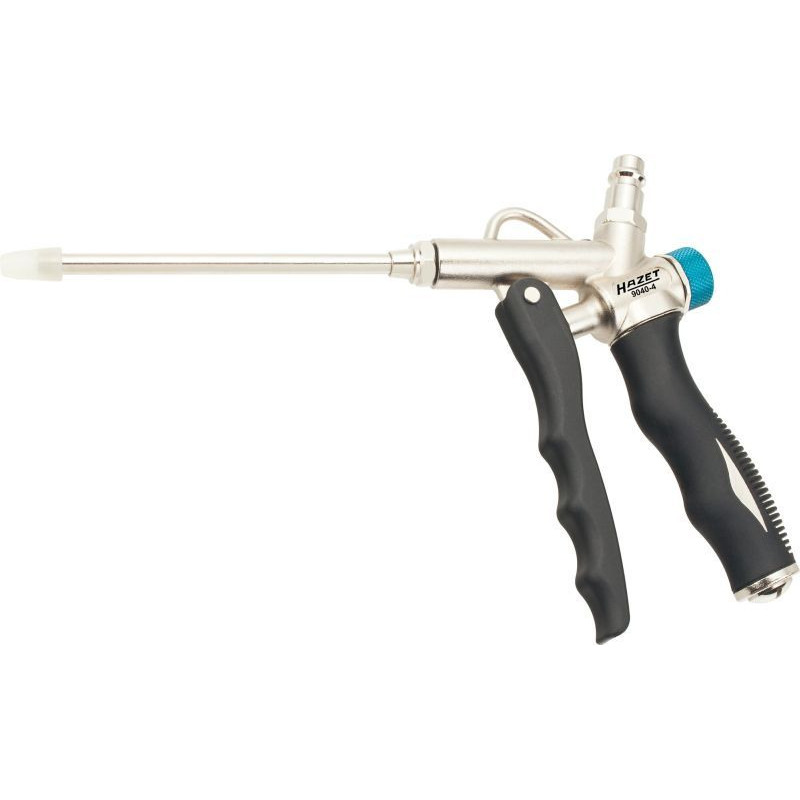

•Choice of air supply at tool head or handle

•Exchangeable nozzles:

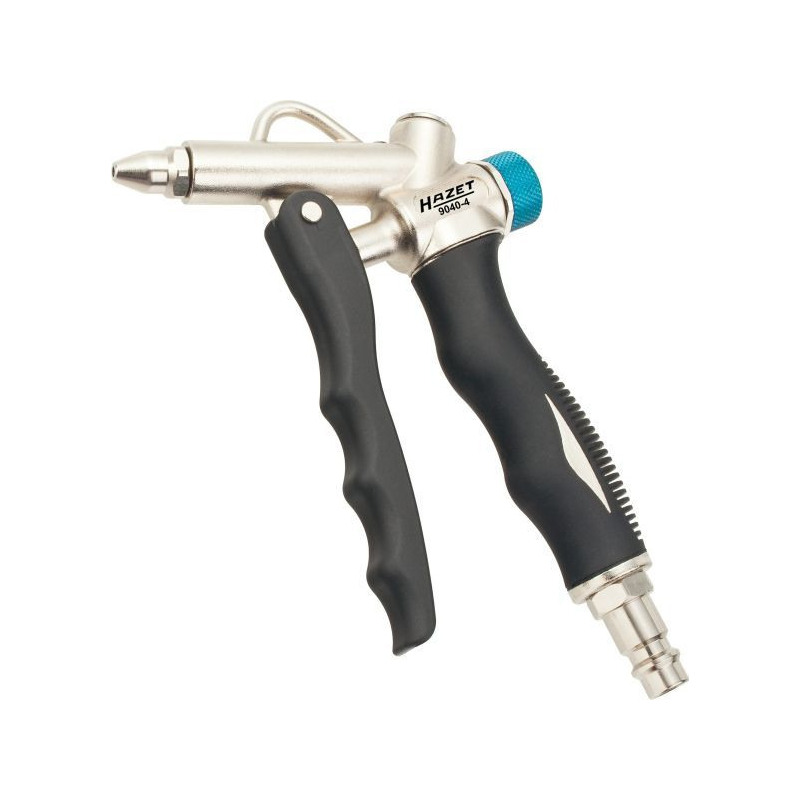

•Short nozzle for areas with restricted access

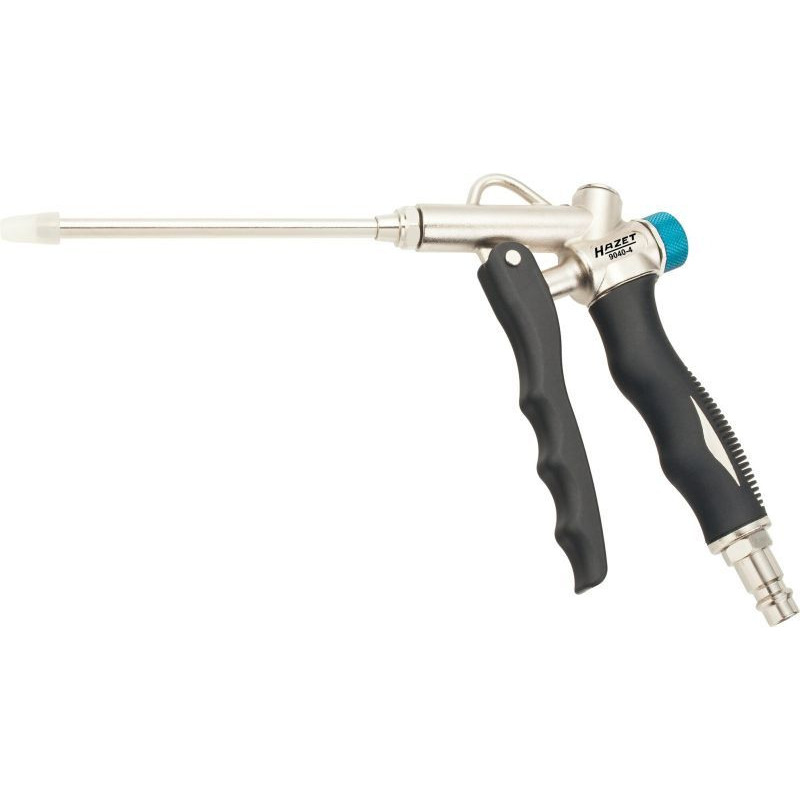

•Long nozzle (112 mm) with safety nozzle tip (scratch
protection)



•Maximum pressure: 10 bar

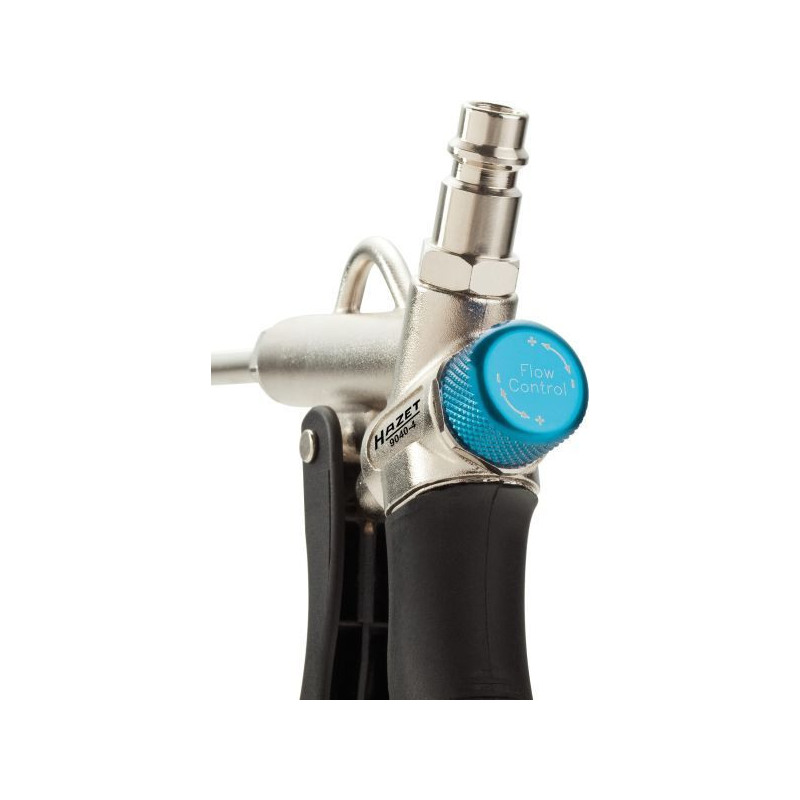

•Pressure regulator

•To be used on machinery, in workshops, for wood work, hobby
workshops

•Aluminium housing

•Thread nozzles: 1⁄8″ PF 28
(9.728 mm outside ⌀ / 0.907 mm pitch)

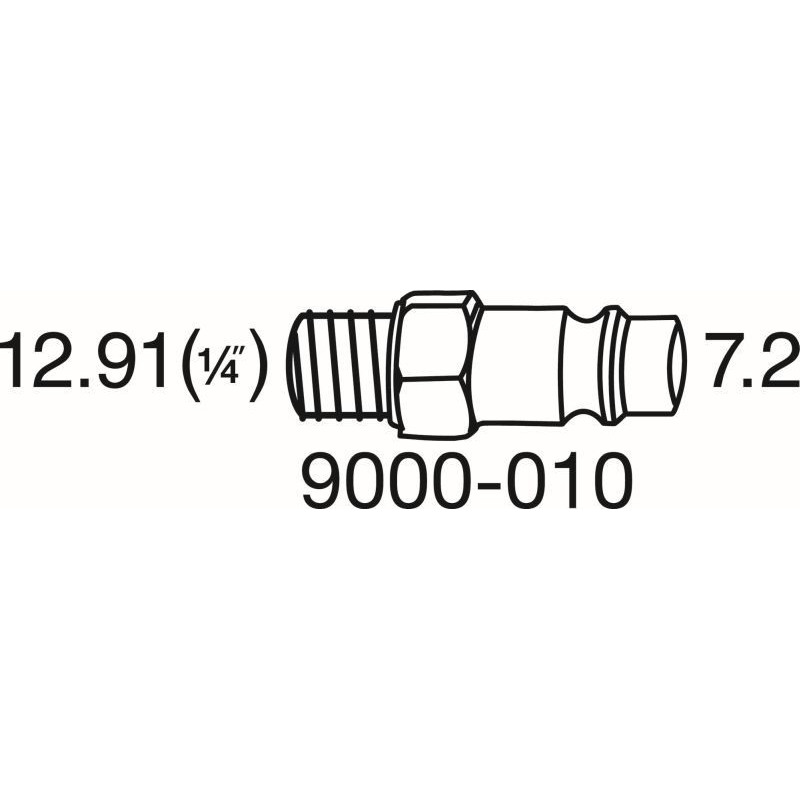

•Air connection inlet: Inside thread 12.91 mm (1/4″)

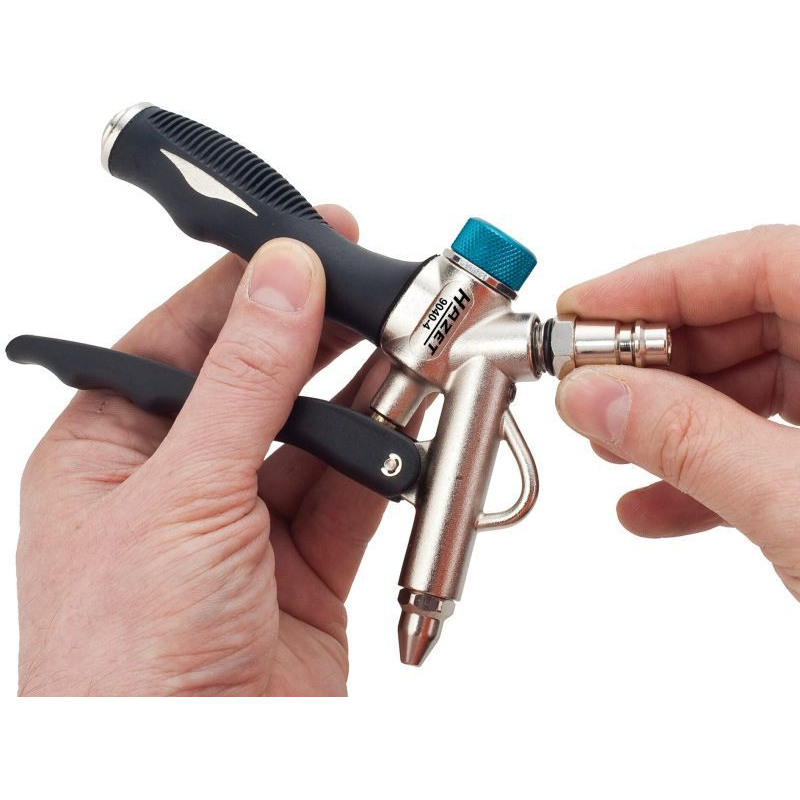

•Coupler plug: Nominal size 7.2 (included)

•Working pressure (bar): 6.3

•Anti-slip, cold insulated handle

•Net weight: 0.2 kg

•Sound pressure level: 86 dB(A) Lp A

•Air requirement: 330 l/min (5.5 l/sec)
