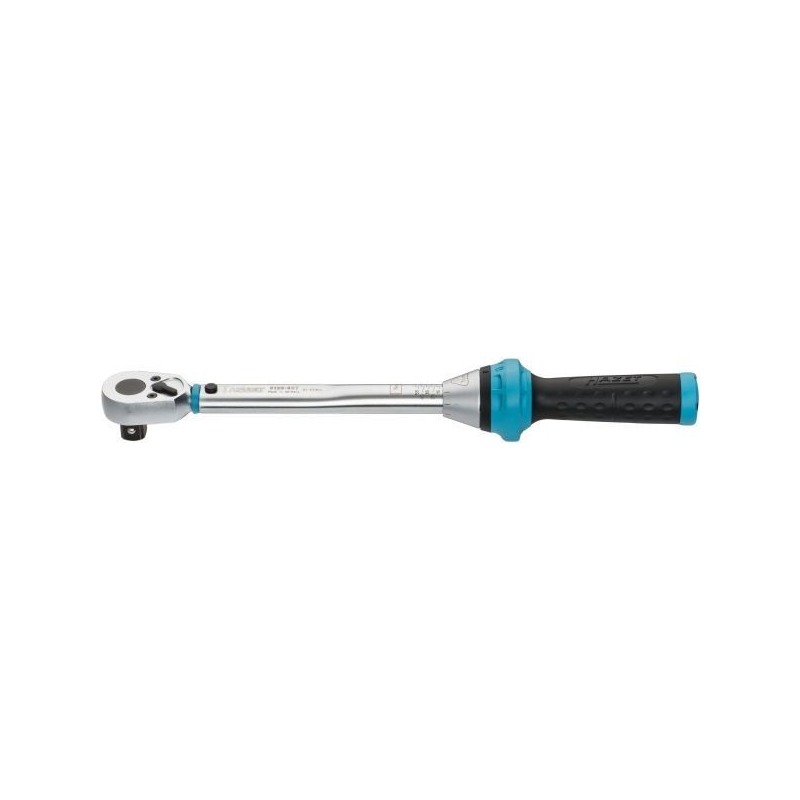

Technical Information: User-friendly reversible ratchet
Extra short style – particularly compact
Specifically also for commercial vehicles
Accuracy ± 3% of scale value (in direction of actuation)
(5107-3 CT ± 4 % release accuracy tolerance)
Safe torque release:
- palpable (close gap release)
- audible (“click” sound)
Designed for rough workshop use
Wide range of applications for controlled screw tightening
in tyre service, bicycle, passenger car and commercial
vehicle applications as well as various applications in
trade and industry.
Optimised sealing ring to protect against debris
Ratchet repair set for customer-oriented self-assembly
enables decades of use
Handle with better grip for easier power transmission
Adjustment aid with detent points for optimised operator
guidance ensures safe and fast adjustment of the desired
torque value by turning the handle
Safe locking of the setting values by latching function on
the rotary assembly
Rotary assembly in triangular form prevents uncontrolled
rolling
Lock symbols indicate the respective locking status.
Can be attached to the cable loop through openings on the
locking rotary assembly
Easy-to-read, high-contrast scale
Permanent readability due to laser marking on the scale bush
Integrated shift lever
5121-3 CT – 5123-3 CT: shift level with free-running
function – reduces the risk of injury and malfunction
Tested in accordance with DIN EN ISO 6789-2:2017
With calibration certificate and serial number
Delivery in sturdy Hexa plastic box
DIN 3120, ISO 1174-1, DIN EN ISO 6789-2:2017
Made in Germany
Output: Square, solid 12.5 mm (1/2 inch)
Dimensions / length: 320 mm
Net weight: 0.49 kg
Nm min-max: 10 – 60 Nm
Tolerance: 3 %
Scale Graduation (Nm): 0.5 Nm
Effective torque wrench length min.-max. I1 mm:
258.30 – 244.20 Nm
Actuating force min.-max. kg: 3.9 – 25.0 kg
Number of teeth: 30 (Opening angle 12°)
Head Thickness a: 14.5 mm
Head Width b: 32 mm
No turning back: continuous long-term tests on the 5000
series and 6000 series of HAZET torque wrenches have been
able to demonstrate that turning them back to the smallest
scale value is no longer required
