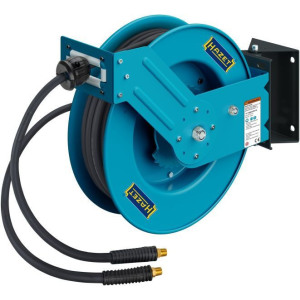

Letkukela HAZET 9040OS-10

Tietoja lyhyesti: HAZET Hose reel ∙ open 9040OS-10 ∙ 400 mm x 186 mm x 426 mm Yleiset tiedot: Application:
Automatic hose reel offers tidiness in the workshop – hose
not left lying around, thus reducing the risk of accidents

•Robust steel design with ball-bearing guiding rails

•Inside diameter of the hose: 10 mm

•For compressed air

•German air connection nipple for air inlet (9000-015)

•End stop

•Spring return with ratchet locking holders

•Hybrid polymer hose, black

•Integrated roller inlet

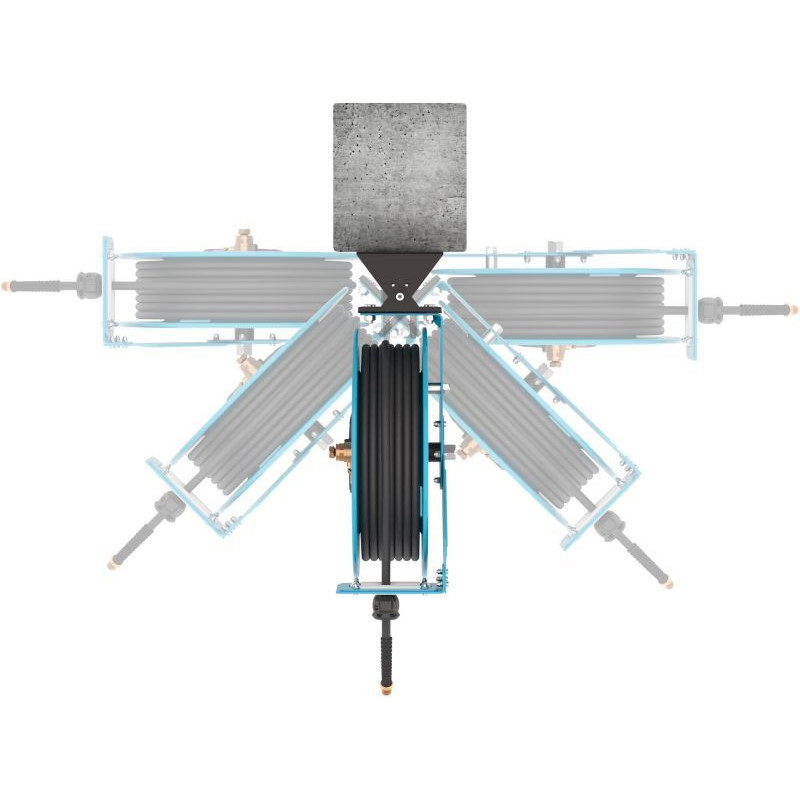

•Swivel base – Maximum swivel range: 180°

•Open design against accumulation of dirt

•Visual inspection of the hose

•Length of connection hose: 2 m

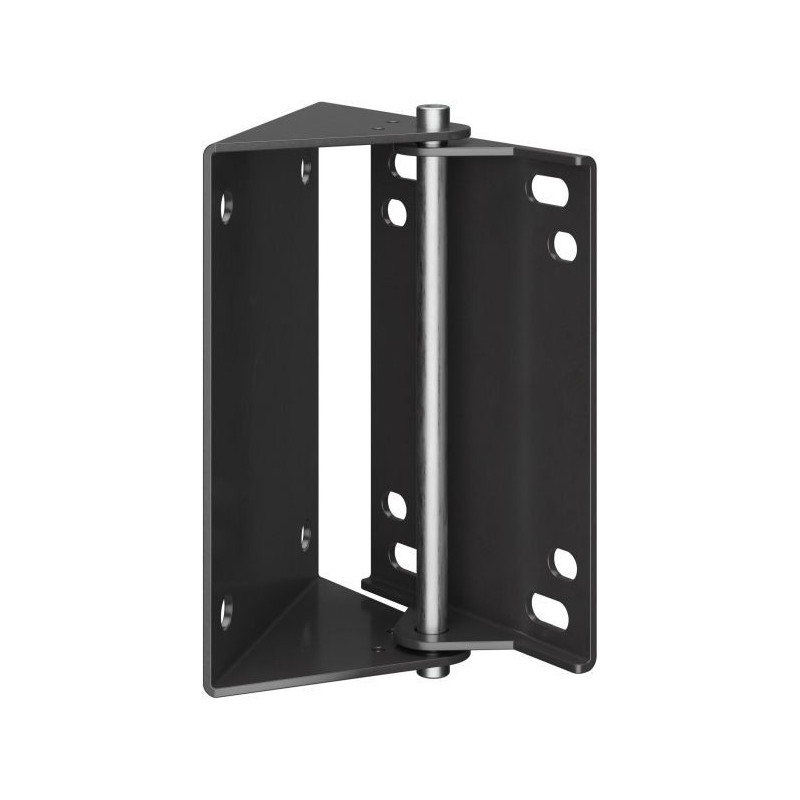

•Installation via metal bracket or swivel base (included)

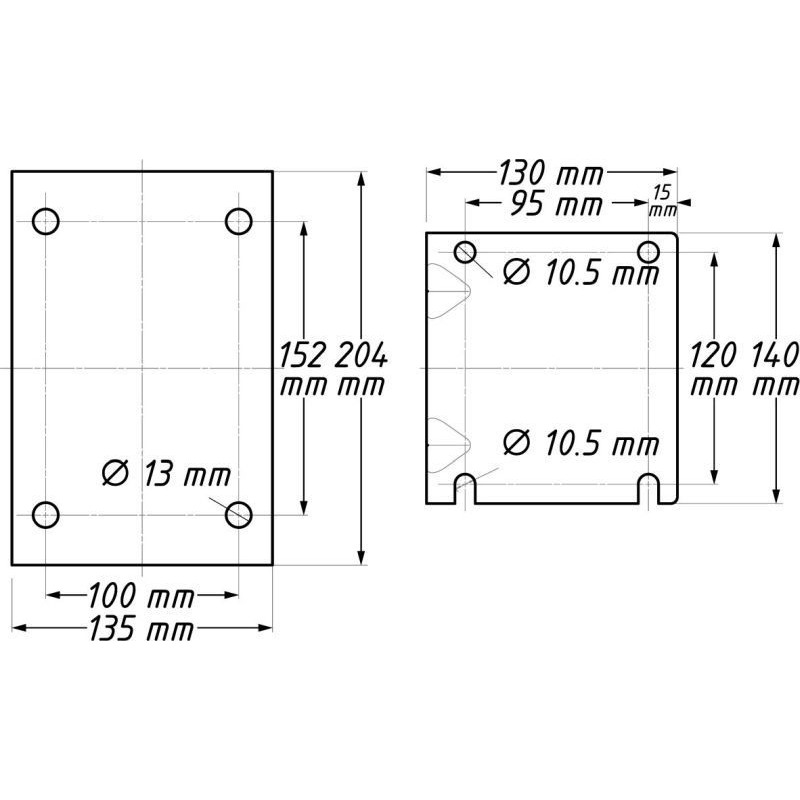

•Drill template on cardboard packaging for easy installation

•Dimensions: 400 x 186 x 522 mm (Including swivel base)

•Can be used with HAZET safety clutch 9000-061

•Air connection inlet: Outside thread 16.41 mm (3/8″)

•Air connection outlet: Outside thread 16.41 mm (3/8″)

•Hose length: 20 m

•Max. working pressure [bar]: 12 bar

•Dimensions / length: 400 mm x 186 mm x 426 mm

•Net weight: 11.68 kg

•Temperature range: -40°C – 60°C
